5f50d599b4d76525a8aae19f Extron XPA U 358C https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/5f50d59cb4d76525a8aae223/xpa-u-358c-1.jpg

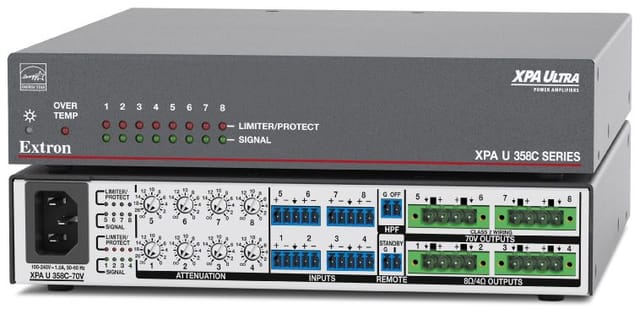

Extron XPA U 358C is an ENERGY STAR qualified audio power amplifier delivering eight 35 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 358C-70V simultaneously delivers 35 watts into four channels at 8 or 4 ohms and 35 watts into four channels at 70 volts while the XPA U 358C-100V simultaneously delivers 35 watts into four channels at 8 or 4 ohms and 35 watts into four channels at 100 volts . The XPA U 358C offers unprecedented channel density and ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

XPA U 358C-70V
in stockINR
Extron
1 1

Extron XPA U 358C


Extron XPA U 358C is an ENERGY STAR qualified audio power amplifier delivering eight 35 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 358C-70V simultaneously delivers 35 watts into four channels at 8 or 4 ohms and 35 watts into four channels at 70 volts while the XPA U 358C-100V simultaneously delivers 35 watts into four channels at 8 or 4 ohms and 35 watts into four channels at 100 volts . The XPA U 358C offers unprecedented channel density and ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

  • Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier
Audio Voltage GainChannels 1, 2, 3, and 4 - 14x (23 dB) Channels 5, 6, 7, and 8 XPA U 358C-70V - 57x (35 dB) XPA U 358C-100V - 81x (38 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type8 balanced/unbalanced
Audio Input Connectors(4) 3.5 mm captive screw connector, 5-pole
Audio Output Signal typeXPA U 358C-70V - 8 channels, 4 low impedance and 4 high impedance 70V XPA U 358C-100V - 8 channels, 4 low impedance and 4 high impedance 100V
Audio Output Connectors(4) 5 mm screw-lock captive screw connector, 4-pole
Country of originUSA
BrandExtron
