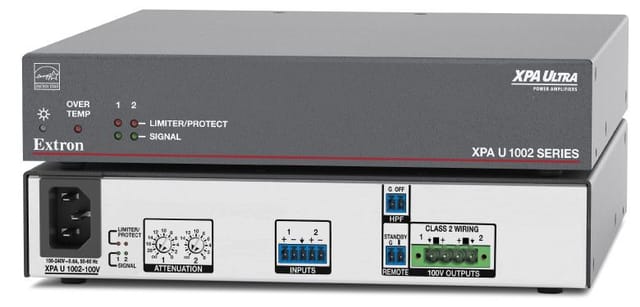

Extron XPA U 1002
Extron s XPA U 1002 is an ENERGY STAR qualified audio power amplifier delivering two 100 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware.The XPA U 1002 delivers 100 watts into 8 or 4 ohms while the XPA U 1002 70V and XPA U 1002 100V deliver 100 watts into 70 volt and 100 volt systems, respectively. The XPA U 1002 offers the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.
- Professional grade signal-to-noise and THD+N performance
- ENERGY STAR qualified amplifier
- Extron Patented CDRS - Class D Ripple Suppression
| Audio Voltage Gain | XPA U 1002 23x (27 dB), XPA U 1002-70V 57x (35 dB),XPA U 1002-100V 81x (38 dB) |
| Audio Stereo channel separation | 75 dB @ 1 kHz (typical) |
| Audio CMRR | 2 balanced/unbalanced |
| Audio Input Signal type | (1) 3.5 mm captive screw connector, 5 pole |
| Audio Input Connectors | XPA U 1002 2 channels, 4 or 8 ohms XPA U 1002-70V 2 channels, 70V XPA U 1002-100V 2 channels, 100V |
| Audio Output Signal type | (1) 5 mm screw lock captive screw connector, 4-pole |
| Country of origin | USA |
| Brand | Extron |
