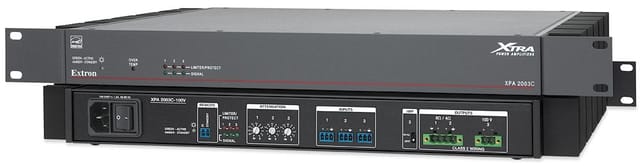

Extron XPA 2003C-100V
Extron XTRA Series XPA 2003C is a 1U, convection-cooled, three channel power amplifiers delivering two channels of 200 watts into 4 ohms, plus 200 watts at 70 volts or 100 volts. This professional grade amplifier features a 100-dB signal-to-noise ratio with 0.1% THD+N. The XPA 2003C is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. This unique amplifier conserves rack space and weighs only 9 lbs (4 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.
- Professional grade signal-to-noise and THD+N performance
- Extron Patented CDRS - Class D Ripple Suppression
- ENERGY STAR qualified amplifier
| Audio Voltage Gain | Channel 1&2 - 23x (27 dB) / Channel 3 - 81x (38 dB) |
| Audio Stereo channel separation | 75 dB @ 1 kHz (typical) |
| Audio CMRR | 75 dB @ 1 kHz (typical) |
| Audio Input Signal type | 3 balanced/unbalanced |
| Audio Input Connectors | (3) 3.5 mm captive screw connectors, 3 pole |
| Audio Output Signal type | 2 channels, 4 or 8 ohms 1 channel, 100 V |
| Audio Output Connectors | (1) 5 mm screw lock captive screw connector, 4 pole (1) 5 mm screw lock captive screw connector, 2 pole |
| Country of origin | USA |
| Brand | Extron |
