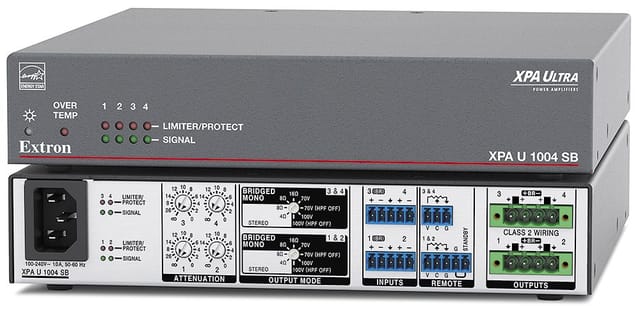

Extron XPA U 1004 SB
Extron XPA U 1004 SB is an ENERGY STAR qualified four channel audio power amplifiers with flexible channel pairs that can drive 8-ohm, 4 ohm, 70 volt, or 100 volt loads. The individually bridgeable pairs can deliver two 100-watt channels into low impedance systems or one 200-watt channel into low or high impedance systems. A rotary switch on the rear panel makes it quick and easy to select output mode. The convection cooled, plenum rated enclosure of the XPA U 1004 SB does not require empty rack spaces for ventilation and includes rack mount hardware. It features a highly efficient advanced Class D amplifier design with defeatable auto standby, fast wake up from standby, and our patented CDRS Class D Ripple Suppression. XPA Ultra SB models also offer remote volume and mute control with Extron VCM, VC or select MediaLink controllers.
- Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
- Extron Patented CDRS - Class D Ripple Suppression
- ENERGY STAR qualified amplifier
| Audio Voltage Gain | Stereo mode (8 ohm) Stereo mode (4 ohm) Bridged mono mode (16 ohm) Bridged mono mode (8 ohm) Bridged mono mode (70V) Bridged mono mode (100V) |
| Audio Stereo channel separation | 75 dB @ 1 kHz (typical) |
| Audio CMRR | 75 dB @ 1 kHz (typical) |
| Audio Input Signal type | 4 balanced/unbalanced |
| Audio Input Connectors | (2) 5-pin 3.5mm captive connector |
| Audio Output Signal type | 4 channel, 8 ohms or 4 ohms; or 2 bridged mono, 8 ohms, 16 ohms, 70V or 100V |
| Audio Output Connectors | (2) 4 pole 5mm screw lock captive screw connectors |
| Country of origin | USA |
| Brand | Extron |
