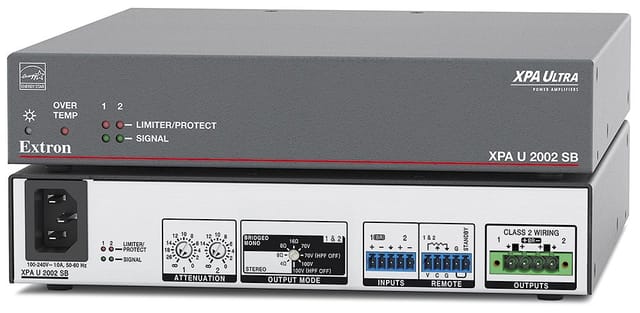

Extron XPA U 2002 SB is an ENERGY STAR qualified two channel audio power amplifiers with a flexible output that can drive 8 ohm, 4 ohm, 70 volt, or 100 volt loads. The bridgeable channels can deliver two 200 watt channels into low impedance systems or a mono 400 watt channel into low or high impedance systems. A rotary switch on the rear panel makes it quick and easy to select output mode. The convection cooled, plenum rated enclosure of the XPA U 2002 SB does not require empty rack spaces for ventilation and includes rack mount hardware. It features a highly efficient advanced Class D amplifier design with defeatable auto standby, fast wake up from standby, and our patented CDRS Class D Ripple Suppression. XPA Ultra SB models also offer remote volume and mute control with Extron VCM, VC or select MediaLink controllers.

XPA U 2002 SB
in stockINR
Extron
1 1

Extron XPA U 2002 SB


Extron XPA U 2002 SB is an ENERGY STAR qualified two channel audio power amplifiers with a flexible output that can drive 8 ohm, 4 ohm, 70 volt, or 100 volt loads. The bridgeable channels can deliver two 200 watt channels into low impedance systems or a mono 400 watt channel into low or high impedance systems. A rotary switch on the rear panel makes it quick and easy to select output mode. The convection cooled, plenum rated enclosure of the XPA U 2002 SB does not require empty rack spaces for ventilation and includes rack mount hardware. It features a highly efficient advanced Class D amplifier design with defeatable auto standby, fast wake up from standby, and our patented CDRS Class D Ripple Suppression. XPA Ultra SB models also offer remote volume and mute control with Extron VCM, VC or select MediaLink controllers.

  • Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier
Audio Voltage GainStereo mode (8 ohm) - 33x (30 dB) Stereo mode (4 ohm) - 23x (27 dB) Bridged mono mode (16 ohm) - 65x (36 dB) Bridged mono mode (8 ohm) - 46x (33 dB) Bridged mono mode (70V) - 57x (35 dB) Bridged mono mode (100V) - 81x (50 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type2 balanced/unbalanced
Audio Input Connectors(1) 5-pin 3.5mm captive connector
Audio Output Signal type2 channel, 4 or 8 ohms; or 1 bridged mono, 8 ohms, 16 ohms, 70V or 100V
Audio Output Connectors(1) 4 pole 5mm screw lock captive screw connector
Country of originUSA
BrandExtron
