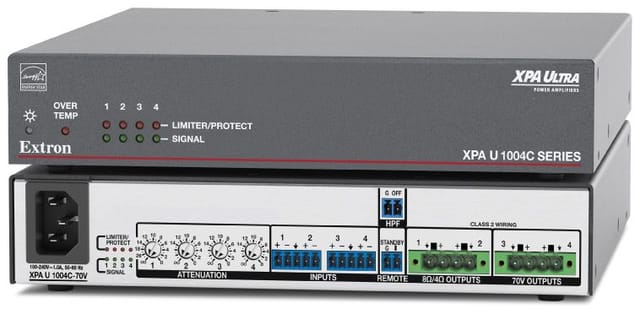

Extron XPA U 1004C
Extron XPA U 1004C is an ENERGY STAR qualified audio power amplifier delivering four 100-watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 1004C-70V simultaneously delivers 100 watts into two channels at 8 or 4 ohms and 100 watts into two channels at 70 volts while the XPA U 1004C-100V delivers 100 watts into two channels at 8 or 4 ohms and 100 watts into two channels at 100 volts. The XPA U 1004C offers unprecedented channel density and the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra-low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.
- Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
- Extron Patented CDRS - Class D Ripple Suppression
- ENERGY STAR qualified amplifier
| Audio Voltage Gain | Channels 1 and 2 - 23x (27 dB) Channels 3 and 4 XPA U 1004C-70V - 57x (35 dB) XPA U 1004C-100V - 81x (38 dB) |
| Audio Stereo channel separation | 75 dB @ 1 kHz (typical) |
| Audio CMRR | 75 dB @ 1 kHz (typical) |
| Audio Input Signal type | 4 balanced/unbalanced |
| Audio Input Connectors | (2) 3.5 mm captive screw connector, 5-pole |
| Audio Output Signal type | XPA U 1004C-70V - 4 channels, 2 low impedance and 2 high impedance 70V XPA U 1004C-100V - 4 channels, 2 low impedance and 2 high impedance 100V |
| Audio Output Connectors | (2) 5 mm screw-lock captive screw connector, 4-pole |
| Country of origin | USA |
| Brand | Extron |
