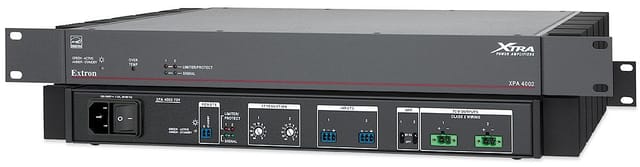

Extron XPA 4002-70V
Extron XTRA Series XPA 4002 is a 1U, convection-cooled power amplifier delivering two channels of 400 watts rms. This professional grade amplifier features a 100 dB signal-to-noise ratio with 0.1% THD+N. The XPA 4002 is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 4002 is half the size of comparable amplifiers, conserving rack space and weighing only 9 lbs (4 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.
- Professional grade signal-to-noise and THD+N performance
- Extron Patented CDRS - Class D Ripple Suppression
- ENERGY STAR qualified amplifier
| Audio Voltage Gain | 57x (35 dB) |
| Audio Stereo channel separation | 75 dB @ 1 kHz (typical) |
| Audio CMRR | 75 dB @ 1 kHz (typical) |
| Audio Input Signal type | 2 balanced/unbalanced |
| Audio Input Connectors | (2) 3.5 mm captive screw connectors, 3 pole |
| Audio Output Signal type | 2 channels 70 V |
| Audio Output Connectors | (2) 5 mm screw lock captive screw connectors, 2 pole |
| Country of origin | USA |
| Brand | Extron |
