5f50d59674b1c325a7e5ab82 Extron XPA U 358 https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/5f50d59a74b1c325a7e5ac00/xpa-u-358-2.jpg

Extron XPA U 358 is an ENERGY STAR qualified audio power amplifier delivering eight 35 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 358 delivers 35 watts into 8 or 4 ohms while the XPA U 358-70V delivers 35 watts into 70 volt systems and the XPA U 358-100V delivers 35 watts into 100 volt systems. The XPA U 358 offers unprecedented channel density and ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto?standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

XPA U 358
in stockINR
Extron
1 1

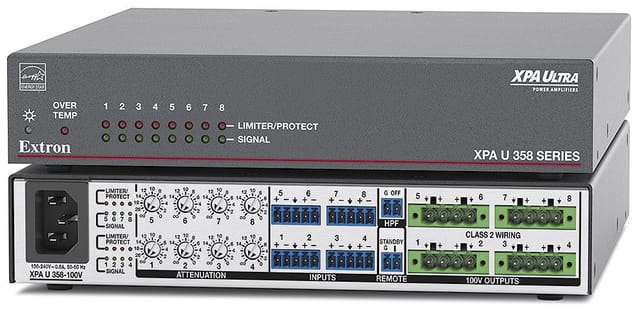

Extron XPA U 358


Extron XPA U 358 is an ENERGY STAR qualified audio power amplifier delivering eight 35 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 358 delivers 35 watts into 8 or 4 ohms while the XPA U 358-70V delivers 35 watts into 70 volt systems and the XPA U 358-100V delivers 35 watts into 100 volt systems. The XPA U 358 offers unprecedented channel density and ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto?standby with fast wake up, and our patented CDRS Class D Ripple Suppression.

  • Convection cooled, fanless operation - can be stacked without extra rack space for ventilation
  • Extron Patented CDRS - Class D Ripple Suppression
  • ENERGY STAR qualified amplifier
Audio Voltage GainXPA U 358 14x (23 dB) XPA U 358-70V 57x (35 dB) XPA U 358-100V 81x (38 dB)
Audio Stereo channel separation75 dB @ 1 kHz (typical)
Audio CMRR75 dB @ 1 kHz (typical)
Audio Input Signal type8 balanced/unbalanced
Audio Input Connectors(4) 3.5 mm captive screw connector, 5-pole
Audio Output Signal typeXPA U 358 8 channels, 4 or 8 ohms XPA U 358-70V 8 channels, 70V XPA U 358-100V 8 channels, 100V
Audio Output Connectors(4) 5 mm screw-lock captive screw connector, 4-pole
Country of originUSA
BrandExtron
Extron XPA U 358

Extron XPA U 358
