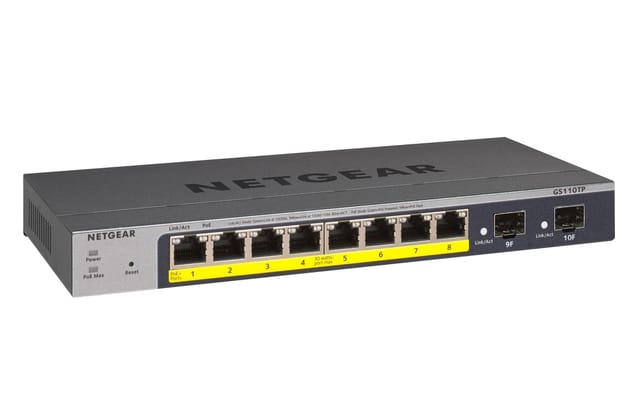

Netgear GS110TP - 8 Ports Switch
Netgear GS110TP 8-Port Gigabit Smart Managed Pro Switches provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. Advanced features such as Layer 3 static routing, IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks
- Static routing, helps route internal traffic for more efficient use of network resources
- IGMP and MLD snooping, provides advanced multicast filtering
- Auto-Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems
| Bandwidth | 20Gbps |
| Power Supply | External |
| Speed | Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T |
| No.of Ports | 8 |
| PoE/PoE+ ports | 8 |
| POE Power Budget | 55W |
| POE Standards | IEEE 802.3af, IEEE 802.3at |
| Form Factor | Desktop |
| Forwarding Mode | Store and Forward |
| Forwarding rate | 14.88Mbps |
| MAC Address Table Size | 8k |
| Operating Temperature | 0 to 40C (32 to 104F) |
| No.of Uplink Ports | 2# SFP Slots |
| Layer2 Features - Availability | Spanning Tree Protocol, Rapid Spanning Tree Protocol, Multiple Spanning Tree protocol, LACP, Broadcast/Multicast/Unicast storm Control |
| VLAN | Protocol based VLAN, MAC based VLAN, Auto Voice VLAN, Auto Video VLAN, Voice VLAN, IEEE 802.1Q VLAN Tagging |
| Multicast | IGMP Snooping(V1,V2, V3), MLD Snooping, IGMP Snooping Queries, Block unknown Multicast, 256# Multicast groups |
| Layer3 Features - Routing | 32# IPv4 Static Routes, VLAN Routing, Host ARP Table, ICMP Router Discover Protocol. |
| DHCP | DHCP Client, DHCP Snooping |
| Network Security | IEEE 802.1x, Guest VLAN, RADIUS-based VLAN assignment via .1x, MAC-based .1x, RADIUS accounting, Access Control Lists (ACLs), IP-based ACLs (IPv4 and IPv6), MAC-based ACLs, TCP/UPD-based ACLs, Port-based security by locked MAC addresses |
| Quality of Service(QOS) | Port-based rate limiting, Port-based QoS, DiffServ QoS, IEEE 802.1p COS, Destination MAC and IP, IPv4 and v6 DSCP, IPv4 and IPv6 ToS, Weighted Round Robin (WRR), Strict priority queue technology. |
| Management, Monitoring & Troubleshooting | SNMP, RMON, Port Mirroring, Ping & Traceroute, Dual Software image, Syslog, TFTP/HTTP firmware upload/download, Local-only web browser-based management GUI, Cloud/Remote management. |
| Country of Origin | USA |
| Brand | Netgear |
