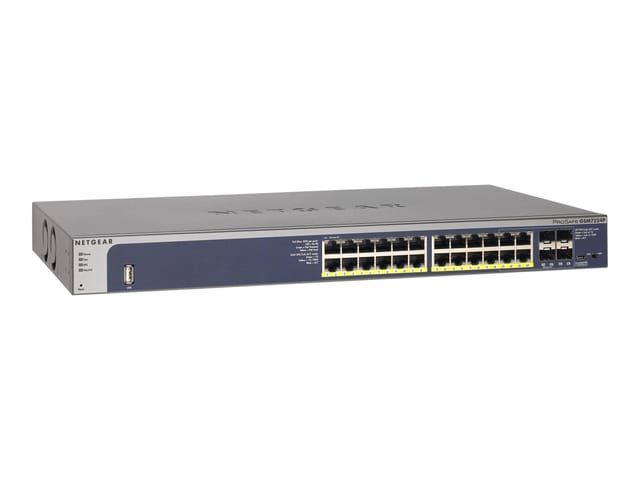

NETGEAR GSM7224 - 24 Ports Switch
NETGEAR Intelligent Edge GSM7224 managed switches supports Fast and Gigabit Ethernet. They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.
- Static routing, helps route internal traffic for more efficient use of network resources
- IGMP and MLD snooping, provides advanced multicast filtering
- Auto-Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems
| Bandwidth | 52Gbps |
| Power Supply | Internal, External RPS Support |
| Speed | Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T |
| No.of Ports | 26 |
| Form Factor | Desktop/Rackmount |
| Forwarding Mode | Store and Forward |
| Forwarding rate | 38.6Mbps |
| MAC Address Table Size | 16k |
| Operating Temperature | 0 to 50C (32 to 122F) |
| No.of Uplink Ports | 4# 100/1000Mbps SFP Slots(Shared) |
| Layer2 Features - Availability | Spanning Tree Protocol, Rapid Spanning Tree Protocol, Multiple Spanning Tree protocol, LACP, Broadcast/Multicast/Unicast storm Control |
| VLAN | Protocol based VLAN, MAC based VLAN, Auto Voice VLAN, Auto Video VLAN, Voice VLAN, IEEE 802.1Q VLAN Tagging |
| Multicast | IGMP Snooping(V1,V2, V3), MLD Snooping, IGMP Snooping Queries, Block unknown Multicast, 256# Multicast groups |
| Layer3 Features - Routing | IPv4 Static Routes, Port Based Routing, VLAN Routing |
| DHCP | DHCP Client, DHCP Snooping |
| Network Security | IEEE 802.1x, Guest VLAN, RADIUS-based VLAN assignment via .1x, MAC-based .1x, RADIUS accounting, Access Control Lists (ACLs), IP-based ACLs (IPv4 and IPv6), MAC-based ACLs, TCP/UPD-based ACLs, Port-based security by locked MAC addresses |
| Quality of Service(QOS) | Port-based rate limiting, Port-based QoS, DiffServ QoS, IEEE 802.1p COS, Destination MAC and IP, IPv4 and v6 DSCP, IPv4 and IPv6 ToS, Weighted Round Robin (WRR), Strict priority queue technology. |
| Management, Monitoring & Troubleshooting | CLI, Telnet, SNMP, RMON, Port Mirroring, Ping & Traceroute, Dual Configuration file, Dual Software image, Syslog, SSH,SSL/HTTPS, X-modem, TFTP/HTTP firmware upload/download, Local-only web browser-based management GUI, TACACS+, Radius accounting. |
| Country of Origin | USA |
| Brand | Netgear |
