63045c492a011ca2cdbbc833 Liberty INT-AS2H1U-TX https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/63045c1f2a011ca2cdbbc650/int-as2h1u-tx_1.png

The Intelix INT-AS2H1U-TX is a 3x1 A/V auto switcher that features two HDMI inputs, one USB-C input, one HDMI output, one HDBaseT output and one balanced analog audio output. The USB-C input supports ALT-DP mode and can also charge a connected source device up to 40 watts. The built in HDBaseT transmitter output can transmit HDMI or USB-C audio and video, RS232 and bi-directional IR over a single solid core shielded Category cable to a compatible Intelix HDBaseT receiver up to 70 meters or 230 feet. The INT-AS2H1U-TX supports 1080p video signal up to 70m/230’ and 4K signals up to 4K@60Hz / 4:2:0 / 8 bit color up to 40m/130’. The switcher supports CEC pass through (HDBaseT receiver only) and is HDCP 2.2 compliant. A built in web GUI allows easy configuration of A/V routing, EDID, display on/off automation, network and HDCP features. 48V PoH is built in to allow the INT-AS2H1U-TX HDBaseT transmitter output to power a compatible Intelix receiver. The switchers functions can be controlled by built in web GUI, RS232 or by TCP/IP. The INT-AS2H1U-TX can also manually control a connected display to the HDBaseT receiver via CEC or RS232 or can be configured to automate the display ON/OFF whenever a video signal is introduced or absent from the switcher system. The INT-AS2H1U-TX is compatible with all Intelix HDBaseT receivers and any HDBaseT product that is built to HDBaseT certified standards.

SKU-CR-IELNFVGJ
in stockINR
Liberty
1 1

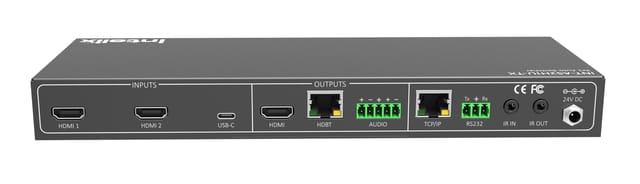

Liberty INT-AS2H1U-TX


The Intelix INT-AS2H1U-TX is a 3x1 A/V auto switcher that features two HDMI inputs, one USB-C input, one HDMI output, one HDBaseT output and one balanced analog audio output. The USB-C input supports ALT-DP mode and can also charge a connected source device up to 40 watts. The built in HDBaseT transmitter output can transmit HDMI or USB-C audio and video, RS232 and bi-directional IR over a single solid core shielded Category cable to a compatible Intelix HDBaseT receiver up to 70 meters or 230 feet. The INT-AS2H1U-TX supports 1080p video signal up to 70m/230’ and 4K signals up to 4K@60Hz / 4:2:0 / 8 bit color up to 40m/130’. The switcher supports CEC pass through (HDBaseT receiver only) and is HDCP 2.2 compliant. A built in web GUI allows easy configuration of A/V routing, EDID, display on/off automation, network and HDCP features. 48V PoH is built in to allow the INT-AS2H1U-TX HDBaseT transmitter output to power a compatible Intelix receiver. The switchers functions can be controlled by built in web GUI, RS232 or by TCP/IP. The INT-AS2H1U-TX can also manually control a connected display to the HDBaseT receiver via CEC or RS232 or can be configured to automate the display ON/OFF whenever a video signal is introduced or absent from the switcher system. The INT-AS2H1U-TX is compatible with all Intelix HDBaseT receivers and any HDBaseT product that is built to HDBaseT certified standards.

  • 2 HDMI & 1 USB-C inputs support resolutions up to 4K
  • 1 HDBaseT output with remote PoH power extended up to 70m
  • 1 HDMI Output; Mirrors HDBaseT output
  • USB-C supports ALT-DP Mode, provides 40w power to device
  • Auto or manual switching
  • Can be controlled via TCP/IP, RS232, or IR
  • Integrated simple display ON/OFF control via RS232 or CEC
  • Control can be extended to HDBaseT receiver
  • Analog audio de-embed
  • Locking power supply
  • HDCP 2.2 compliant
  • HDBaseT compliant and pairs with all Intelix HDBaseT products
BrandLiberty
Liberty  INT-AS2H1U-TX

Liberty INT-AS2H1U-TX
