63049f239413f58ee51b2000 Liberty BYOD-HUB-UT https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/63049ecc6c29048f1161e263/byod-hub-ut_front.png

The DigitaLinx BYOD-HUB-UT is a 6x1 multi format A/V auto switcher that features a variety of input connection leads that are compatible with devices such as mobile phones and tablets, allowing a dependable wired connection to a display or TV monitor for presentation purposes. The BYOD-HUB-UT features the following A/V input leads; (1) Lightning (1) USB-C (1) MINI Display port (1) Display port (1) HDMI type-A and (1) HDMI type-D. The BYOD-HUB-UT features an HDMI output with a built in 4K video scalar that can be set to either 4K or 1080p. The Lightning connector lead input will provide power to the connected mobile device and the USB-C connection lead uses Display Port over Alternate Mode (ALT-DP) for video transport. A laptop computer with a USB-C connection must support ALT DP mode in order to use this device. The BYOD-HUB-UT auto switches in priority from Lightning to HDMI Type D (going left to right as seen on front panel), the switcher will not memorize order of connection sequences. When there is no A/V input signal detected in the BYOD-HUB-UT after 10 minutes, the switcher hub will power OFF. When an A/V input signal is connected to a cable lead when the switcher hub is in the OFF state, the BYOD-HUB-UT will power ON. A mounting bracket is included so unit can be mounted under a conference table or presentation podium.

SKU-SZYH_VMHBSN
in stockINR
Liberty
1 1

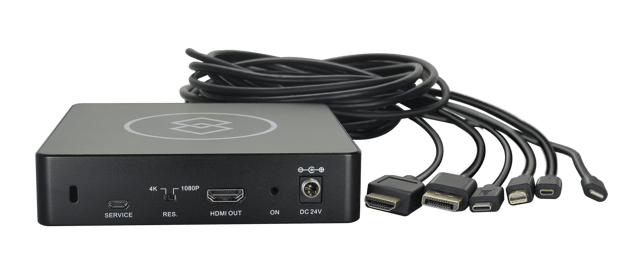

Liberty BYOD-HUB-UT


The DigitaLinx BYOD-HUB-UT is a 6x1 multi format A/V auto switcher that features a variety of input connection leads that are compatible with devices such as mobile phones and tablets, allowing a dependable wired connection to a display or TV monitor for presentation purposes. The BYOD-HUB-UT features the following A/V input leads; (1) Lightning (1) USB-C (1) MINI Display port (1) Display port (1) HDMI type-A and (1) HDMI type-D. The BYOD-HUB-UT features an HDMI output with a built in 4K video scalar that can be set to either 4K or 1080p. The Lightning connector lead input will provide power to the connected mobile device and the USB-C connection lead uses Display Port over Alternate Mode (ALT-DP) for video transport. A laptop computer with a USB-C connection must support ALT DP mode in order to use this device. The BYOD-HUB-UT auto switches in priority from Lightning to HDMI Type D (going left to right as seen on front panel), the switcher will not memorize order of connection sequences. When there is no A/V input signal detected in the BYOD-HUB-UT after 10 minutes, the switcher hub will power OFF. When an A/V input signal is connected to a cable lead when the switcher hub is in the OFF state, the BYOD-HUB-UT will power ON. A mounting bracket is included so unit can be mounted under a conference table or presentation podium.

  • 6 Popular BYOD input types
  • All inputs scaled to 1080P or 4K and converted to HDMI
  • Auto switching
  • Apple lightning
  • HDMI (Type A)
  • HDMI mini (Type-D)
  • Display port
  • Mini display port
  • USB-C (Supports Display Port over Alternate Mode)
  • All above input types converted to HDMI and scaled to 1080P or 4K
  • Customizable Splash Screen Upon Request
  • Cables are 1.4m (4 1/2') to allow for under table mounting, passing through cubbies, table grommets, etc.
  • Auto switches in priority from Lightning to HDMI Type D (left to right)
  • Under table mount included
  • Cables leads are field replaceable using part number BYOD-CABLE
  • HDCP compliant
  • Patent-pending
BrandLiberty

Liberty BYOD-HUB-UT
