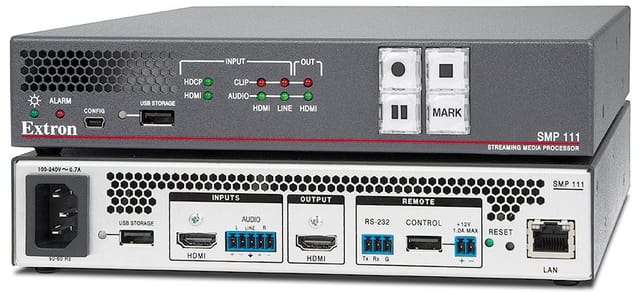

Extron SMP 111
Extron SMP 111 is a high-performance recording and streaming processor for capturing and distributing AV sources and presentations as live streaming and recorded media. The SMP 111 accepts an HDMI signal with embedded audio and an analog audio signal. Extron high performance scaling and flexible signal processing enable superior display of content of varying resolutions from computers and HDTV sources. The SMP 111 supports extensive streaming capabilities. It can record and stream simultaneously, with independent resolutions and bit rates, using a range of transport protocols and session management options. Recording with the SMP 111 provides easy capture of live HDMI signals to an internal flash drive and external USB drives. Requiring no licensing fees, the SMP 111 is a cost-effective solution for streaming and recording content.
- Process live, high resolution HDMI video and audio with metadata
- ecord and stream simultaneously
- High quality scaling with aspect ratio control, size, and position
| Video Input Signal type | 1 HDMI digital video (HDCP content not supported) |
| Video Input Connectors type | 1 female HDMI type A |
| Video Input Resolution range | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 640x480 to 1920x1200 |
| Digital processing | 4:2:2, 8-bits per color |
| Compression | H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8-bit color,Encoding profiles: High, Main, Baseline; Encoding levels: 4.1, 4.0, 3.2, 3.1, 3.0; configurable GOP |
| Bit rate | 200 kbps to 10 Mbps |
| Video output Signal type | 1 H.264/AVC digital video over Ethernet 1 HDMI digital video |
| Video output Connector type | 1 female RJ-45 (streaming) 1 female HDMI type A |
| Video output Scaled resolution | HDMI output/record: 480p, 720p, 1080p, 512x288, 1024x768, 1280x1024 Stream: 480p, 720p, 1080p, 512x288, 1024x768, 1280x1024 |
| Video output Frame rate | Up to 30 fps for all output rates |
| File system for USB storage | FAT32, NTFS, VFAT long file name extensions, EXT2, EXT3, EXT4 |
| File transfer protocols | FTP, SFTP, CIFS |
| Resolution | 480p, 720p, 1080p, 512x288, 1024x768, 1280x1024 |
| Internal storage capacity | 32 GB SDHC |
| Communication Protocols | Streaming , Pull: RTP/RTCP (RFC 3550), RTSP (RFC 2326), Interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP unicast or multicast, Push: MPEG2-TS/UDP* (ISO/IEC 13818-1), MPEG2-TS/RTP* (RFC 2250, IPTV?ID-0087, ETSI TS 102 034), Direct RTP (RFC 3984), SAP (RFC2974), SDP (RFC4566), unicast or multicast, RTMPTransport TCP, UDP, multicast IGMPv3 (RFC 3376) or unicast |
| Country of origin | USA |
| Brand | Extron |
