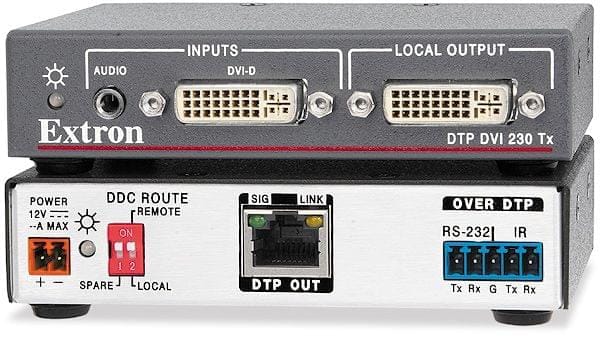

Extron DTP Transmitter for DVI 230
Extron DTP DVI 4K 230 Tx is a transmitter for sending DVI-D video, audio, and bidirectional RS?232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP ?enabled products. It provides an economical and effective means for extending single link DVI-D or HDMI signals. In addition, the DTP DVI 4K 230 Tx accepts analog stereo audio signals for simultaneous transmission over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The transmitter is equipped with a buffered DVI loop-through output to support a local computer monitor. The compact enclosure size and remote power capability make the DTP DVI 4K 230 Tx ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.
- Transmits single link DVI-D plus control and analog audio up to 230 feet (70 meters) over a shielded CATx cable
- Supports computer and video resolutions up to 4K
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
| Frame rate | 24, 25, 30, 50, or 60 fps |
| Chroma sampling | 4:4:4, 4:2:2, or 4:2:0 |
| Colour bit depth | 8 bits per color |
| Signal type | HDMI 1.4, HDCP 2.3 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling |
| Connector type | 1 single link DVI-D (or HDMI*) input 1 single link DVI-D (or HDMI*) local loop-through |
| Signal transmission distance | 1080p @ 60 Hz - Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 2560x1600 @ 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 4K/UHD @ 30Hz and 60 Hz - Up to 130' (40 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| Country of Origin | USA |
| Brand | Extron |
