5f50b8d5ff987eeff7ef0223 Extron Three Input Compact HDCP-Compliant Video Scaler https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/5f50b8d6ff987eeff7ef0276/extron-three-input-compact-hdcp-compliant-video-scaler.jpg

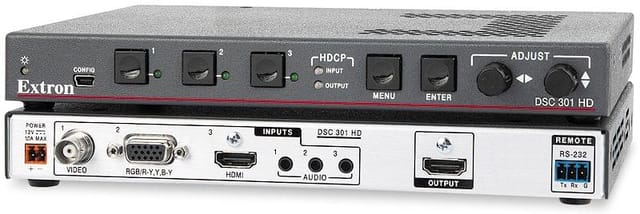

Extron DSC 301 HD is a three input, HDCP compliant video scaler that includes an HDMI input, configurable high resolution analog and composite video inputs, and an HDMI output. The DSC 301 HD accepts a wide variety of video formats including HDMI, HDTV, RGB, component, and standard definition video. It features advanced Extron video signal processing with deinterlacing of signals up to 1080i. The DSC 301 HD includes many integrator-friendly features including EDID Minder and automatic input switching. Analog audio from any of three stereo inputs may be embedded onto the HDMI output. Front panel controls, intuitive on-screen menus, plus USB and RS 232 connections provide flexible control and monitoring. The compact, low profile, half rack width enclosure of the DSC 301 HD enables simple and discreet mounting in many environments.

DSC 301 HD
in stockINR
Extron
1 1

Extron Three Input Compact HDCP-Compliant Video Scaler


Extron DSC 301 HD is a three input, HDCP compliant video scaler that includes an HDMI input, configurable high resolution analog and composite video inputs, and an HDMI output. The DSC 301 HD accepts a wide variety of video formats including HDMI, HDTV, RGB, component, and standard definition video. It features advanced Extron video signal processing with deinterlacing of signals up to 1080i. The DSC 301 HD includes many integrator-friendly features including EDID Minder and automatic input switching. Analog audio from any of three stereo inputs may be embedded onto the HDMI output. Front panel controls, intuitive on-screen menus, plus USB and RS 232 connections provide flexible control and monitoring. The compact, low profile, half rack width enclosure of the DSC 301 HD enables simple and discreet mounting in many environments.

  • HDMI and analog video scaling to HDMI
  • Selectable output rates from 640x480 to 1920x1200, including 1080p/60 and 2K
  • Auto-switching between inputs
Video Input Signal Type1 Composite, 1 RGBHV/YUV (YUVi, YUVp, and YUV-HD), 1 HDMI/DVI (HDCP compliant)
Video Input Connector1 female BNC for composite, 1 female 15-pin HD for RGB/YUV, 1 female HDMI type A for HDMI/DVI
Video Input Resolution640x480 to 1920x1200* sampled pixel for pixel, NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i, 1080p, and 2k*reduced blanking
Video Output Signal Type1 HDMI/DVI (HDCP compliant)
Video Output Connector1 female HDMI type A
Video Output Scaled resolution640x480 to 2048x1080 23.98Hz to 75Hz
Audio Input Signal Type1 HDMI/DVI (HDCP compliant)
Audio Input Connector1 female HDMI type A
Audio Output Signal Type(1) 2-channel LPCM audio or digital pass-through
Audio Output Connector1 female HDMI type A
PowersupplyInput: 100-240 VAC, 50-60 Hz, Output: 12 VDC, 1.5 A, 18 watts
Country of OriginUSA
BrandExtron
