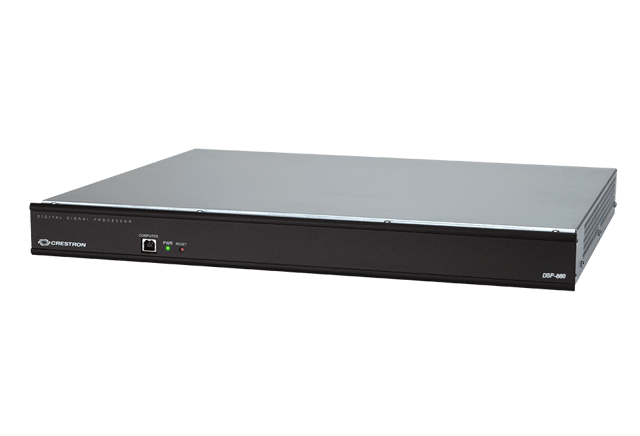

Crestron DSP-860
Crestron DSP-860
- The Crestron Avia family of digital signal processors leverages the highest quality components and the expertise of veteran audio industry engineers to deliver a revolutionary audio processing platform that s easy to integrate and configure.
- It has all the features and performance top sound system designers demand complemented with an intuitive graphical workspace conceived to inspire exceptional results quickly.
Coming Soon!
| Analog-To-Digital Conversion | 24-bit 48 kHz |
| Digital-to-Analog Conversion | 24-bit 48 kHz |
| THD | 0.001%, 20 Hz to 20 kHz, 0 dB gain, +4 dBu input; 0.01%, 22 Hz to 22 kHz, 54 dB gain, -50 dBu input |
| Dynamic Range | 110 dB, 22 Hz to 22 kHz, 0 dB gain |
| USB Device | USB device port for computer console (setup) |
| MIC/LINE INPUTS\n1-8 | (8) 3-pin 3.5 mm detachable terminal blocks; Balanced microphone/line-level audio inputs; Input Level: +24 dBu maximum; Gain Range: 66 dB; Input Impedance: 10k Ohms balanced; Phantom Power: +48 Volts DC, 12 mA, software enabled/disabled per channel |
| LINE OUTPUTS\n1- 6 | (6) 3-pin 3.5 mm detachable terminal blocks; Balanced/unbalanced line-level audio outputs; Output Level: +24 dBu maximum; Output Impedance: 150 Ohms balanced |
| Country of Origin | USA |
| Brand | Crestron |
