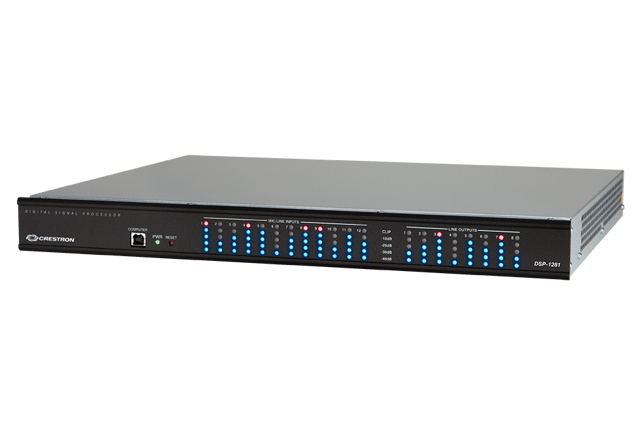

Crestron DSP-1281

The Crestron Avia family of digital signal processors leverages the highest quality components and the expertise of veteran audio industry engineers to deliver a revolutionary audio processing platform that s easy to integrate and configure.

It has all the features and performance top sound system designers demand complemented with an intuitive graphical workspace conceived to inspire exceptional results quickly.

Coming Soon!

Analog-To-Digital Conversion	24-bit 48 kHz
Digital-to-Analog Conversion	24-bit 48 kHz
THD	0.001%, 20 Hz to 20 kHz, 0 dB gain, +4 dBu input; 0.01%, 22 Hz to 22 kHz, 54 dB gain, -50 dBu input
Dynamic Range	110 dB, 22 Hz to 22 kHz, 0 dB gain
USB Device	USB device port for computer console (setup)
MIC/LINE INPUTS\n1 12	(12) 3-pin 3.5 mm detachable terminal blocks; Balanced microphone/line-level audio inputs; Input Level: +24 dBu maximum; Gain Range: 66 dB; Input Impedance: 10k Ohms balanced; Phantom Power: +48 Volts DC, 12 mA, software enabled/disabled per channel
LINE OUTPUTS\n1 8	(8) 3-pin 3.5 mm detachable terminal blocks; Balanced/unbalanced line-level audio outputs; Output Level: +24 dBu maximum; Output Impedance: 150 Ohms balanced
Country of Origin	USA
Brand	Crestron
