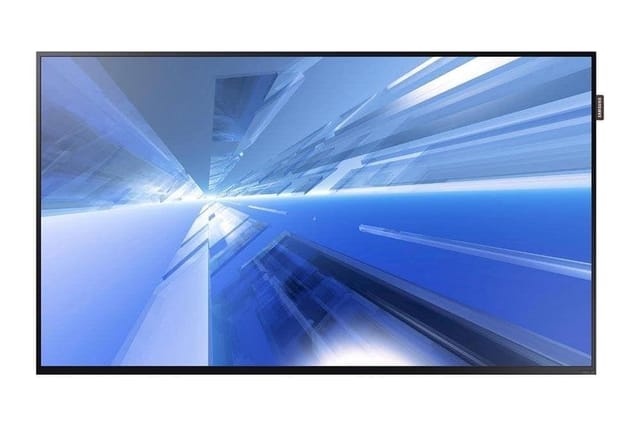

SAMSUNG DC55E
A reliable, affordable display with essential functionalities you need to deliver quality content
- Affordable digital signage that supports 16/7 operation and 350-nit brightness
- Easy and simple content management with embedded MagicInfo Lite
- Slim design and expanded connectivity options for space efficiency
- Attract customers with optimized 16/7 performance
- Content Auto Play in USB memory or internal memory
- Control Displays in multiple locations easily and instantly
- Easily Manage digital signage with a versatile connectivity
| Resolution | 1920*1080 (Full HD) |
| Model Number | DC55E |
| Display | Dynamic C/R:MEGA; H-Scanning Frequency: 30 to 81kHz; V-Scanning Frequency: 48 to 75Hz; Maximum Pixel Frequency: 148.5MHz. |
| Power | Max[W/h]: 176.0; Typical[W/h]:(W/W)115, (US)55, (KR)133; BTU(Max): 600.16; Sleep mode: less than 0.5W; Off mode: 0. |
| Warranty | Standard Warranty Terms as per OEM |
| Size | 55 Inch |
| Panel | Diagonal Size: 55"; Type: 60Hz D-LED BLU; Resolution:1920*1080 (Full HD); Pixel Pitch(mm): 0.21(H) x 0.63(V); Active Display: Area(mm)1209.6(H) x 680.4(V); Brightness(Typ.): 350 nit; Contrast Ratio: 5000:1; Viewing Angle(H/V): 178:178; Response Time(G-to-G): 6ms; Display Colors: 16.7 M; Color Gamut: 72%; Operation Hour: 16/7; Haze: 2%. |
| Ports | Input- RGB: D-SUB, DVI-D; Video: HDMI1, HDMI2, Component(CVBS Common); HDCP: HDCP 1.4; Audio: Stereo Mini Jack, RGB/DVI/HDMI/CVBS/Component Audio(common); USB: USB 2.0 x 1; Output- Audio: Stereo Mini Jack; External Control: RS232C(in) thru stereo jack, RJ45; External Sensor: IR; Tuner: Yes(only for NA/KR). |
| Country of Origin | South Korea |
| Brand | Samsung |
