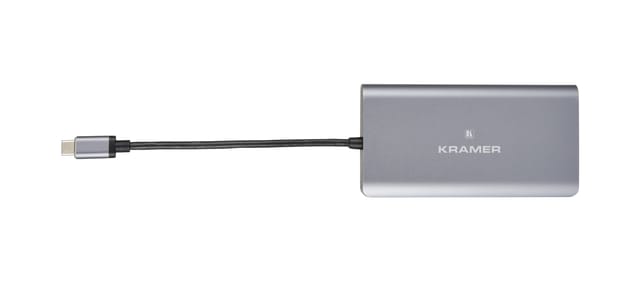

Kramer Kdock-3
KDock−3 is a USB−C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB Type−C, mobile phones, and tablets. KDock−3 enables you to connect your USB−C device to HDMI™ and DisplayPort video outputs, 2 USB 3.0 ports, an Ethernet port, SD card port and USB−C data and charging pass−through.
- USB–C Hub Multiport Adapter
- 4K@30 HDMI output
- 4K@30 DisplayPort output
- VGA output
- USB 3.0 data and charging ports
- Ethernet port
- USB–C charging pass–through
| Inputs | 1 USB: On a USB Type–C male connector |
| Outputs | 1 HDMI: On a female HDMI connector 1 DisplayPort: On a female DisplayPort connector |
| Ports | 2 USB 3.0/2.0: On female USB type–A connectors 1 Ethernet: On an RJ–45 connector 1 USB 3.0: On a female USB type–C connector for data and charging SD: On an SD card port |
| Video | Max Resolution: 3840x2160P@30Hz (with one display connected) Max Resolution: 1920x1080P@60Hz (with two displays connected) Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel) Multiple Video Output Support: Via MST (Multi–Stream Transport) technology Content Protection (HDMI output): HDCP 1.4 |
| Extended Ethernet | Max Data Rate: 1000M (Gigabit)/100M/10M Includes: Wake–on–LAN (WoL), single Mac address, PXE boot |
| General | USB 3.0 Data Transmission Speed (USB 3.0 & USB-C): Up to 5.0Gbps |
| Power | Delivery: 100W USB Charging: BC1.2 (5V 1.5A) USB Limited Current when Connected to Power via female USB-C port: 1.9A USB Limited Current when Not Connected to Power via female USB-C port: 1A |
| Country of Origin | Isreal |
| Brand | Kramer |
