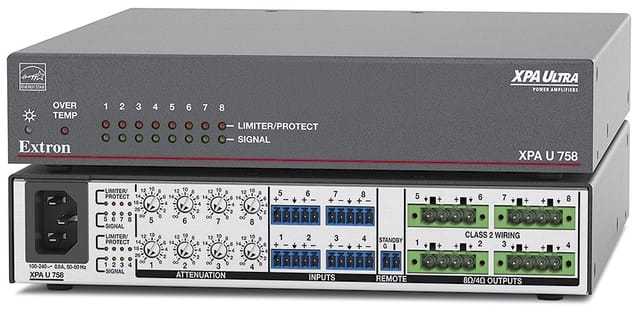

Extron XPA U 758 is an ENERGY STAR qualified audio power amplifier delivering eight 75 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 758 offers unprecedented power and channel density with the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.
XPA U 758Extron XPA U 758 is an ENERGY STAR qualified audio power amplifier delivering eight 75 watt channels in a half rack, 1U, convection cooled, plenum rated enclosure that includes rack mount hardware. The XPA U 758 offers unprecedented power and channel density with the ability to install units without using rack spaces for ventilation, conserving precious rack space. It features a highly efficient advanced Class D amplifier design with power factor correction, ultra low inrush current, defeatable auto standby with fast wake up, and our patented CDRS Class D Ripple Suppression.
Audio Voltage Gain | 20x (26 dB) |
Audio Stereo channel separation | 75 dB @ 1 kHz (typical) |
Audio CMRR | 75 dB @ 1 kHz (typical) |
Audio Input Signal type | 8 balanced/unbalanced |
Audio Input Connectors | (4) 3.5 mm captive screw connector, 5-pole |
Audio Output Signal type | 8 channels, 4 or 8 ohms |
Audio Output Connectors | (4) 5 mm screw-lock captive screw connector, 4-pole |
Country of origin | USA |
Brand | Extron |
