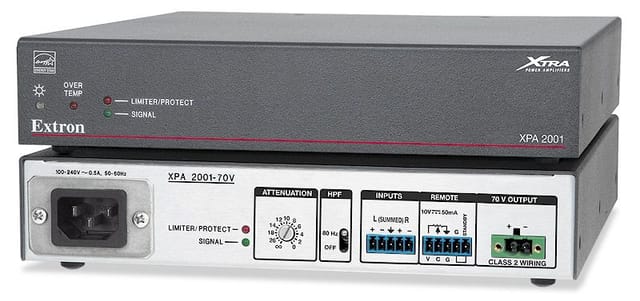

Extron XPA 2001 70V
Extron XTRA Series XPA 2001 is a half rack 1U, convection cooled power amplifier delivering 200 watts into a 70 volt or 100 volt line. This professional grade amplifier features a 100 dB signal-to-noise ratio with less than 0.1% THD+N. The XPA 2001 is an ENERGY STAR qualified amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 2001 is housed in a half rack width metal enclosure, conserving rack space and weighing only 2.5 lbs (1.1 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.
- Professional grade signal-to-noise and THD+N performance
- Extron Patented CDRS� - Class D Ripple Suppression
- ENERGY STAR� qualified amplifier
| Audio Voltage Gain | 23x (27dB) |
| Audio Stereo channel separation | >75 dB @ 1 kHz |
| Audio CMRR | 75 dB @ 1 kHz (typical) |
| Audio Input Signal type | 1 stereo or 2 mono, balanced/unbalanced |
| Audio Input Connectors | (1) 3.5 mm captive screw connector, 5 pole |
| Audio Output Signal type | 1 mono, 70 V line |
| Audio Output Connectors | (1) 5 mm screw lock captive screw connector, 4 pole |
| Country Of Origin | USA |
| Brand | Extron |
