5f50d5842fcf2125eec7f08e Extron SW2 DP https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/5f50d5872fcf2125eec7f146/extron-sw2-dp.jpg

Extron SW2 DP is a two input, one output DisplayPort switcher. The SW2 DP is HDCP compliant and supports data rates up to 10.8 Gbps and computer resolutions up to 2560x1600 @ 60 Hz. It features EDID Minder , which maintains continuous EDID communication with connected devices and ensures that the DisplayPort sources power up properly and maintain correct video output. The SW2 DP provides automatic input cable equalization up to 25 feet (7 meters) on Extron DisplayPort cable. Multiple control points, including front panel, RS-232, and auto-input switching, simplify integration into a variety of system designs. The SW2 DP switcher is ideal for applications that require the routing of two DisplayPort sources to a single display.

SW2 DP
in stockINR
Extron
1 1

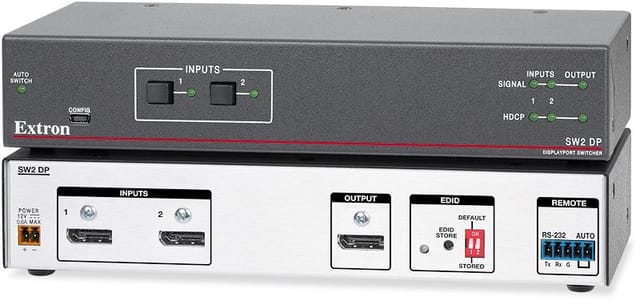

Extron SW2 DP


Extron SW2 DP is a two input, one output DisplayPort switcher. The SW2 DP is HDCP compliant and supports data rates up to 10.8 Gbps and computer resolutions up to 2560x1600 @ 60 Hz. It features EDID Minder , which maintains continuous EDID communication with connected devices and ensures that the DisplayPort sources power up properly and maintain correct video output. The SW2 DP provides automatic input cable equalization up to 25 feet (7 meters) on Extron DisplayPort cable. Multiple control points, including front panel, RS-232, and auto-input switching, simplify integration into a variety of system designs. The SW2 DP switcher is ideal for applications that require the routing of two DisplayPort sources to a single display.

  • Supports DisplayPort data rates up to 10.8 Gbps
  • Supports PC resolutions up to 2560x1600 @ 60 Hz and HDTV 1080p/60
  • EDID Minder automatically manages EDID communication between connected devices
Video output1 DisplayPort
Signal typeDisplayPort 1.1a, HDCP
Max. video data rateUp to 10.8 Gbps (2.7 Gbps per lane)
Resolution rangeUp to 2560x1600 @ 60 Hz
Output Cable LengthUp to 25' (7.6 m)
Video input2 DisplayPort
Input Cable LengthUp to 25' (7.6 m)
Country of originUSA
BrandExtron
