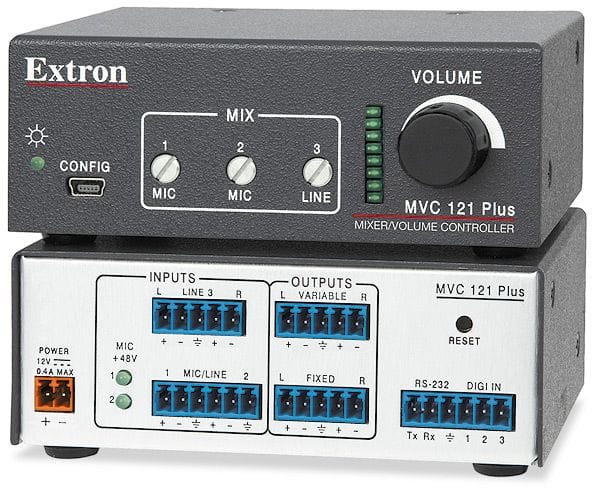

Extron MVC 121 Plus
Extron MVC 121 Plus is a compact, three input stereo audio mixer featuring a digital signal processing platform for audio signal mixing and control. The MVC 121 Plus features a stereo line level input and two mic/line level inputs with 48 volt phantom power for condenser microphones, plus fixed and variable stereo line level outputs. It offers gain, filter, tone processing, and parametric EQ. Quick and intuitive configuration using the DSP Configurator Software allows the MVC 121 Plus to be installed in very little time. The MVC 121 Plus is ideal for presentation applications that require line and microphone audio mixing with DSP in a small form factor.
- Mixes two microphone inputs and one stereo line input to two stereo outputs
- DSP audio signal processing
- 24-bit/48 kHz analog-to-digital and digital-to-analog converters
| CMRR | >60 dB @ 1 kHz |
| Audio input | Microphone inputs - (1) 3.5 mm captive screw connector, 6 pole (1) 3.5 mm captive screw connector, 5 pole |
| Audio output | (2) 3.5 mm captive screw connector, 5 poles |
| Audio Gain | Unbalanced output: -6 dB; balanced output: 0 dB |
| Frequency response | 20 Hz to 20 kHz, 0.3 dB |
| THD + Noise | <0.02% @ 1 kHz, at maximum output level |
| Signal to Noise ratio | >100 dB, 20 Hz to 20 kHz, at maximum output, unweighted |
| Crosstalk | <-90 dB @ 1 kHz, fully loaded |
| Audio Processing | 24-bit, 48 kHz sampling |
| Country Of Origin | USA |
