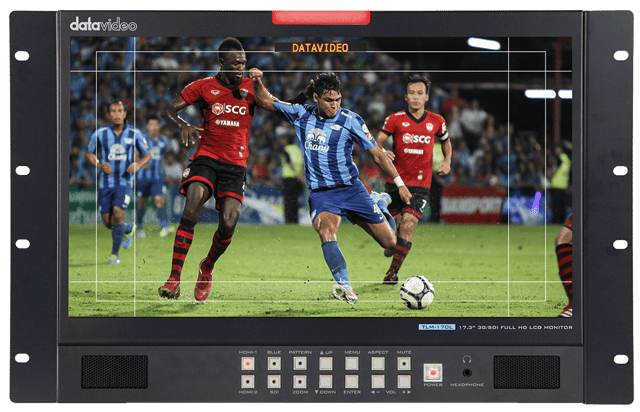

DATAVIDEO TLM-170LR
17.3" 3G-SDI FULL HD LCD Monitor - 7U Rackmount Unit ,Supports multiple input and output configurations,Various built-in functions
Coming Soon!
| Chassis | 7RU Rack Mount |
| Tally LED | Live (Red) Cued (Green) |
| Screen | 17.3" LED Backlit |
| Resolution | 1920x1080 |
| Viewing Angle | (H) +70/-70 deg (V) +60/-60 deg |
| Luminance/Contrast | 300cd/m� 400:1 |
| Supported Input Resolutions | 1080p(23.98/24SF/24/25/29.97/30/50/59.95/60Hz), 1080i(50/59.94/60Hz), 720p(50/59.94/60Hz), 576i(PAL), 480i(NTSC) |
| Aspect Ratio | 16:9, 4:3 |
| Audio In/Out | Embedded Audio on SDI and HDMI |
| Special Features | 3G-SDI Support, Blue Only, Safe Frame, Pixel Zoom up to 8x |
| Country of Origin | Taiwan |
| Brand | Datavideo |
