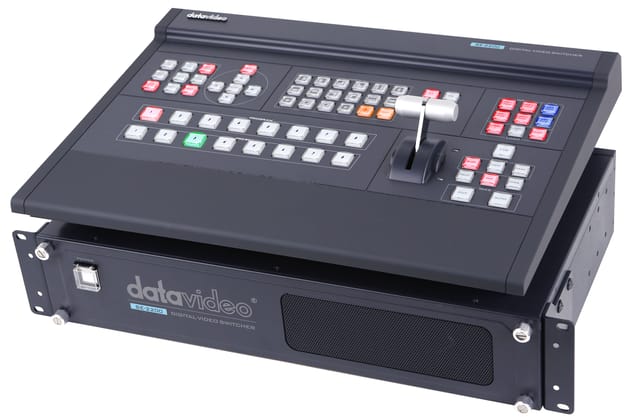

DATAVIDEO SE-2200
6 Input HD broadcast quality switcher,Cost-effective support for productions using multiple IMAG screens,6 inputs, 6 outputs. Support for medium to large productions,Dual PIP and a built-in title creator system
Coming Soon!
| Audio Input | 4x Balanced XLR |
| Audio Output | 2x Balanced XLR |
| Video Standard | HD & SD |
| Video Format | 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i 50Hz 480i 59.94Hz |
| Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB 4:4:4 |
| Video Input | 6x HD-SDI, 2x HDMI (on CH5 & 6) |
| Video Output | 6x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean & multi-view 2x HDMI assignable: PGM or multi-view |
| Embedded Audio Support | Input up to 16 channels, Output 4 channels |
| DSK | 2x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture | 2 |
| Logo Insertion | 2 (or 1 logo + 1 clock) |
| Still Store | 6 |
| Tally Output | 1x D-sub 25pin, dual color |
| Country of Origin | Taiwan |
| Brand | Datavideo |
