5f69d459549389fc3c843edd DATAVIDEO ITC-300 https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/5f69d753042a3312e5882129/itc-300.jpg

Digital Intercom System,Intercom system evolution and innovation,Single CAT cable for everything,Rackmountable 8 channels Intercom System,Special design for your RJ-45 connector

SKU-ITC-300
in stockINR
Datavideo
1 1

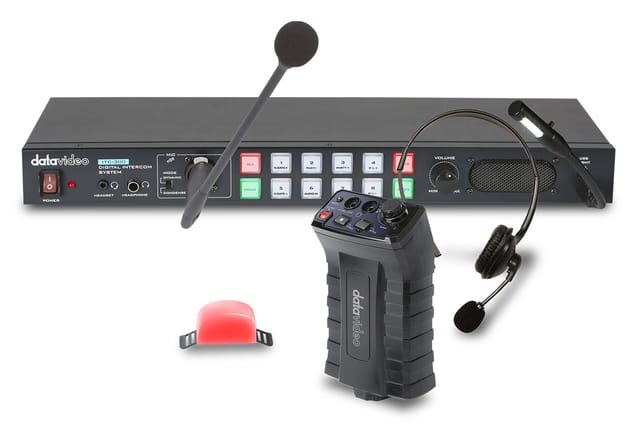

DATAVIDEO ITC-300


Digital Intercom System,Intercom system evolution and innovation,Single CAT cable for everything,Rackmountable 8 channels Intercom System,Special design for your RJ-45 connector

Coming Soon!
Tally2 x 15 Pin D-Sub Female Sockets for Tally A and Tally B
MIC / Headset1 x 3.5mm Stereo Jack Socket (For Headphone / Microphone combination) Headset Impedance 24 ohm 100mW(min) Microphone Level -45.2dB (Tip: Mic?Ring: Phone?Sleeve: GND)
Headphone1 x 1/4" (6.3mm) Stereo Headphone Socket (Tip: Phone?Ring: Phone?Sleeve: GND)
Light Socket (DC 12 V)Light Power Consumption: +5 V / 500 mA
Microphone3 Pin XLR / 1/4 (6.3mm) Socket x 1Switchable Condenser / DynamicInput Microphone Level -67dBPIN1:N/A,PIN2:MIC,PIN3:GND
Frequency Response300 Hz-7 KHz, < +/-3dB
THD< 0.1% @1KHz
S/N>70dB
Built-in Speaker3W Speaker is mute when headphones or mic / headset are connected to the ITC-300
Operating RangeUp to 100m between Base Station and Slave
Country of OriginTaiwan
BrandDatavideo
