Cybernetyx Thinkerconnect
Cybernetyx Thinkerconnect
- Industry’sFirst Interactive/Touch-enabled
- VC Camera Solution withNoise-cancellation Mic Array
- Thinker Connect is a perfect productivity solution for meeting rooms, which when clipped on over any standard display or \u001fat panel, turns it into touch interactive and enables video conferencing.The easiest way to set up a zoom room with interactive whiteboarding capabilities. Thinker Connect turns the meeting room into an agile space and allows remote team to meet and co-annotate together across different devices.Thinker Connect is the \u001drst-of-its-kind solution that offers touch interactivity in video conferencing. Integrated with MeetEQ AI-powered Camera and MeetEQ Acoustically Intelligent Mic Array, Thinker Connect augments the productivity in the meeting room manifold.
- VC Camera Solution withNoise-cancellation Mic Array

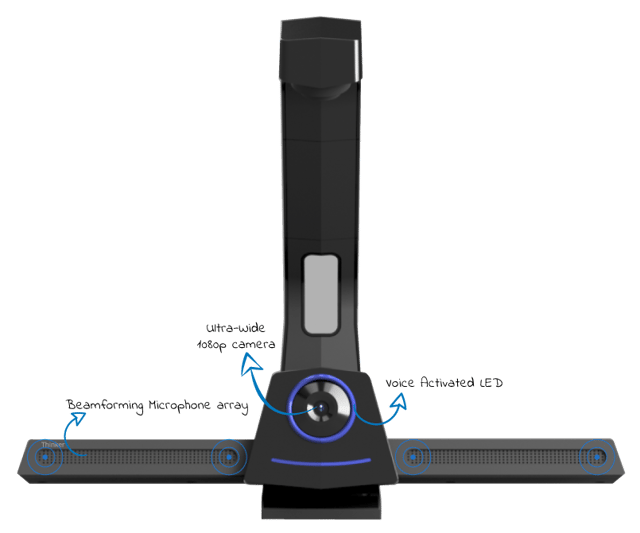

- Integrated with powerful 1080p camera and 4 MEMS mic array, enabling Full HD VC where everyone in the meeting room up to a team size of 15 people are captured and heard clearly.
- A plug and play, clip-on device, firmly sits on any display or monitor giving complete peace of mind during installation.
- Compatible with most of the widely used collaboration tools in organisations like Teams, Zoom, Skype etc.
- Supports Display screen sizes varying from 32” up to 75” and supports multiple pixel densities like HD, Full HD, and 4K.
| Type | Interactive Camera (Touchscreenexperience)EyeRIS® 3-DDual-bandOptical |
| Cross Platform Support (BYOD) | Only Windows® and macOS® |
| Camera Quality | Full HD 1080p |
| Camera View Angle | 110° |
| Microphone | 4 Acoustic MEMS Microphones |
| Voice Capture Distance | 5m Radius Voice Capture (extendable upto 20m depending on environment conditions) |
| Microphone Features | VAD (Voice Activity Detection) and DOA (Direction of Arrival) |
| Integrated Voice DSP Features | 4-mic adaptive beam-formerFull-duplex Acoustic Echo Cancellation( AEC) with barge-in support (upto 50dB att.)De-reverberation, noise suppression (upto 15dB att.), Automatic Gain Control (AEC) |
| Power Requirement | 5V |
| Connectivity | I/O Micro USB, DC In |
| Simultaneous Input Points | 255 |
| Accuracy | +/-2px |
| Display Size Support | 32"to75" |
| AmbientLight ResistanceTechnology | 830nm +/-20 & 650nm +/-20 dual band tracking technology (Visible and IR bands) |
| Tracking Speed& Response time | 120FPS(can be extended upto 200FPS)&195 milliondots/se |
| CalibrationTechnology | Automatic & Manual Calibration |
| Stylus Power Requirements | Super-Capacitive technology, No Consumables,3 minutes charging time via USB |
| Whiteboard Suit | Flow ( Windows®, Mac®) |
| Accessories (Standard) | Micro USB cable |
| Accessories (Optional) | Cybernetyx® FP65 ,BoardScan |
| Brand | Cybernetyx |
