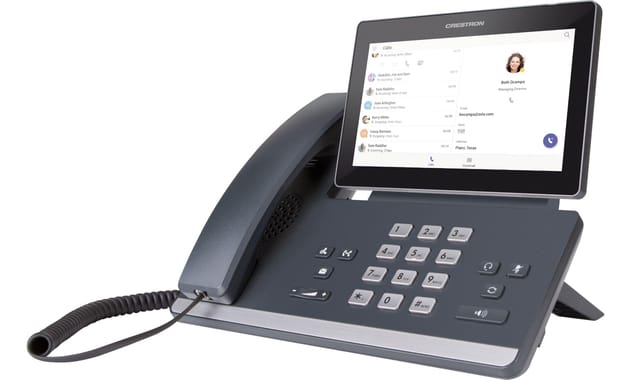

CRESTRON UC-P100-T
Coming Soon!
Coming Soon!
| Touch Screen | Display Type \tTFT active matrix color LCD Size \t7 in. (178 mm) diagonal Aspect Ratio \t16:9 WSVGA Resolution \t1024 x 600 pixel Touch Screen \tCapacitive, 5-point multi-touch capable Language Support \tEnglish (United States), Chinese Simplified, Chinese Traditional, French (EU), German, Italian, Polish, Portuguese (EU), Spanish (EU), Turkish, Russian |
| Connectors | PC \t(1) 8-pin RJ45 connector, female; 1000Base-T Ethernet port; Switched LAN port for optional computer connection Internet \t(1) 8-pin RJ45 connector, female; 1000Base-T Ethernet port & PoE PD port; For connection to LAN with PoE PSE; 6.5 ft (2 m) CAT5e FTP Ethernet cable included DC5V \t(1) DC power connector; 5 VDC power input (not used) Headset \t(1) RJ9 4P4C connector, female; For optional headset (not included) Handset \t(1) RJ9 4P4C connector, female; For handset (included) USB \t(1) USB Type A connector, female (behind touch screen); USB 2.0 host port (not used) |
| Included Components | UC-PHONE-T ,SW-XIOC-P-1 |
| Communications & Audio | Ethernet \t1000 Mbps, IPv4/IPv6, static/DHCP/PPPoE IP assignment, LLDP-MED VLAN assignment, proxy mode, TCP/IP, UDP/IP, DNS-SRV (RFC 3263), SNTP, TLS, SRTP, 802.1p/Q VLAN tagging, Layer 3 ToS DSCP, EWS authentication, HTTPS certificate manager, IEEE 802.1X, Active Directory, digest access authentication using MD5/MD5-sess, password login, HTTPS web server, Crestron XiO Cloud client, Microsoft Intune® client, dual-port Gigabit Ethernet switch, IEEE 802.3at Type 1 PoE compliant VoIP \tMicrosoft Teams client; compatible with Office 365 cloud service; supports Enterprise Voice, Phone System, O365 modern authentication (limited), directory lookup, PSTN calling, E911, common area phone, calendar, hot desking; DTMF tone generation (RFC 2833 out-of-band, in-band), acoustic echo cancellation, automatic gain control, voice activity detection, comfort noise generator, low-delay audio packet transmission, adaptive jitter buffers, packet loss concealment Codec Support \tG.711(A/μ), G.722, G.723.1, G.726, G.729A/B, Ilbc, SILK Handset \tHD wideband handset, hearing aid compatible (HAC) Speakerphone \tHD wideband speaker and microphone, hands-free full-duplex |
| Buttons & Indicators | Power \t(1) Red LED (above touch screen), illuminates to indicate phone is powered on, flashes fast to indicate an incoming call, flashes slow to indicate a message waiting Keypad \t(12) ITU E 1.161 standard keypad buttons Functions \t(9) Buttons for Hold, Transfer, Message, Volume -/+, Headset*, Mute*, Redial, Speakerphone*; *Buttons are LED backlit to indicate active status Hook Switch \t(1) Handset hook switch |
| POWER | Power over Ethernet \tIEEE 802.3at Type 1 (802.3af compatible), Class 3 (12.95 W) PoE Powered Device Power Consumption \t2.3 to 6.0 W |
| Country of Origin | USA |
| Brand | Crestron |
