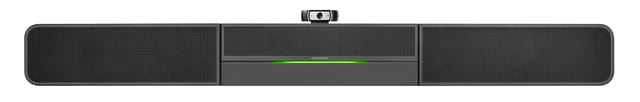

CRESTRON FLEX UC-SB1-AV

UC Video Conference Smart Soundbar & Camera . A sleek and stylish soundbar comprising a high‑performance conferencing speakerphone in one stunning front‑of‑room device.

Installs cleanly beneath the room display, and interfaces with any computer via USB. Includes connectivity for an external USB camera (not included).

DSP inbuilt
USB Audio In/Out
Analog Input,,Analog Input Sensitivity,Analog Output
Works with WEBEX, ZOOM, TEAMS, GOTOMEETING, SKYPE, POLY or any other soft vc systems

Microphone	Linear quad‑element far‑field adaptive beamforming microphone array Pickup Range \t15 ft. (4.6m)1 Pickup Angle \t180° Horizontal Frequency Response \t20 Hz to 8 kHz Audio
Included Components	UC video conference smart soundbar and Logitech® Webcam C930e
Audio	DSP,USB Audio In/Out,Analog Input,,Analog Input Sensitivity,Analog Output
POWER	500 mA maximum @ 100‑240 VAC, 50/60 Hz,22 W
Speakers	Woofers,Passive Radiators,Tweeters, Amplifier Power Frequency Response \t80 Hz to 20 kHz (±3 dB) Effective Output Level \t91 dB SPL @ 1 m, both channels driven at full power
Video	USB Camera Input
CONNECTORS	Connectors AUDIO IN \t(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio input; Input Level: 1 Vrms maximum; Input Impedance: 10k Ohms AUDIO OUT \t(1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio output; Output Level: 1 Vrms maximum; Output Impedance: 100 Ohms PC \t(1) USB 3.0 Type‑B connector, female; USB 3.0 device port; Connects to computer; 6 ft (1.83 m) USB 3.0 Type B to Type A cable included CAMERA \t(1) USB 3.0 Type‑A connector, female; USB 3.0 host port; Connects to the internal camera output via a 6 in. (13 cm) USB Type‑C™ to USB 3.0 Type A cable 100‑240V~ 0.5A 50/60Hz \t(1) IEC 60320 C14 main power inlet; Mates with removable power cord, included
CAMERA	Model \tLogitech® Webcam C930e Field of View \t90-degree diagonal Connectivity \tPlug-and-play USB 2.0 Resolution/FPS \tFull HD 1080p/30, HD 720p/30 HD Digital Zoom \t4x, 1080p Auto-Light Correction \tRightLight™ 2
Country of Origin	USA
Brand	Crestron
